Product Details:
|
| Part Number: | LQ14E01018P1 / LQ13E01251P1 / LQ13E01246P1 / LQ13E01245P1 / LQ13E01186P1 / LQ16E01015P1 | Applicable Model: | SK200-8,SK210-8,SK250-8,SK260-8 |
|---|---|---|---|
| Brand: | Kobelco Excavator | Goods Status: | Brand New And Unused |
| Post-sales Service: | Online Support | Packaging Type: | Independent Paper Packaging |
| Commercial Quality: | Superior Quality | Materials: | Pure Copper |
| High Light: | LQ13E01246P1 Whole Car Wiring Harness,Kobelco Excavator Whole Car Wiring Harness,LQ13E01245P1 Excavator Car Wiring Harness |
||
LQ13E01246P1,LQ13E01245P1 Kobelco Excavator SK200-8 Whole Car Wiring Harness, Wire Assembly
Kobelco EXCAVATOR SK200-8,SK210-8,SK250-8,SK260-8 whole vehicle wiring harness assembly, this list includes 6 commonly used wires, LQ13E01251P1 for low-voltage sensor, LQ13E01186P1 for auxiliary wire connecting fuse box assembly, LQ14E01018P1 for display screen connecting computer board, LQ13E01245P1 for hydraulic pump mainline, LQ13E01246P1 for engine ECU controller, and LQ16E01015P1 for generator.The products are new and unused, and the wiring harness is produced in the proportion of 1:1 according to the original package
|

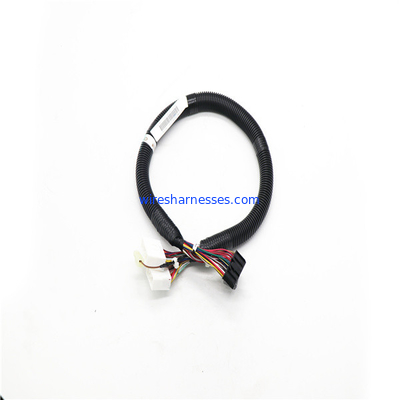

LQ14E01018P1 |
The monitor is connected to the controller wire |
|
LQ13E01251P1 |
Walking low voltage sensor wiring harness |
|
LQ13E01246P1 |
Engine ECU wiring harness |
|
LQ13E01245P1 |
Connect the main wire of the hydraulic pump |
|
LQ13E01186P1 |
Connect fuse box wires |
|
LQ16E01015P1 |
Generator harness
|
|
SK200-8,SK210-8,SK250-8,SK260-8
|
|
|
|

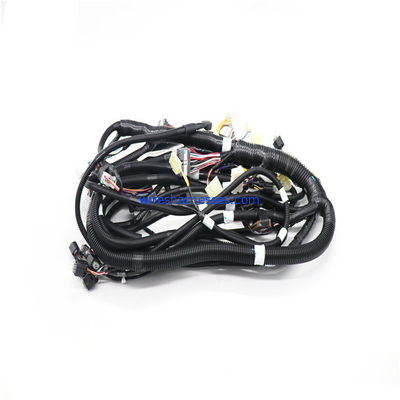

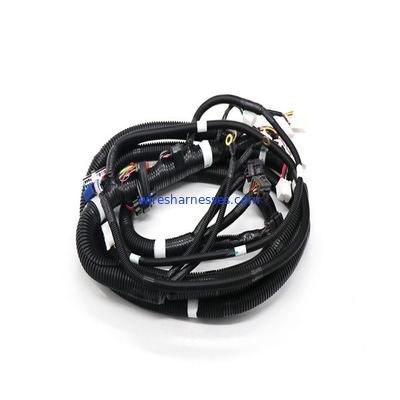

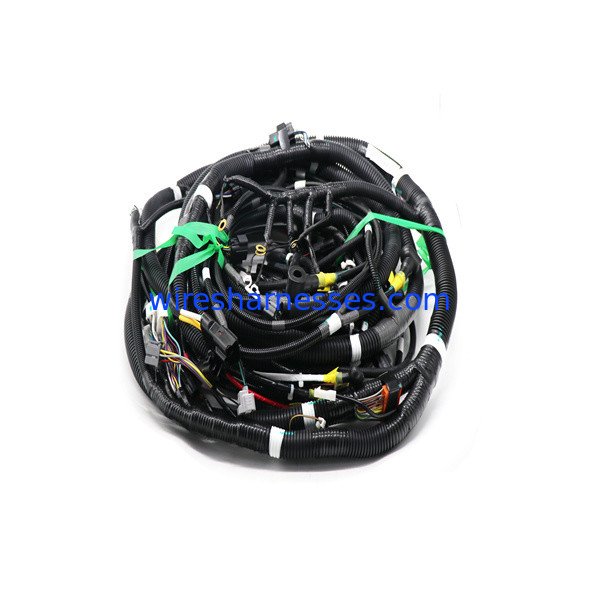

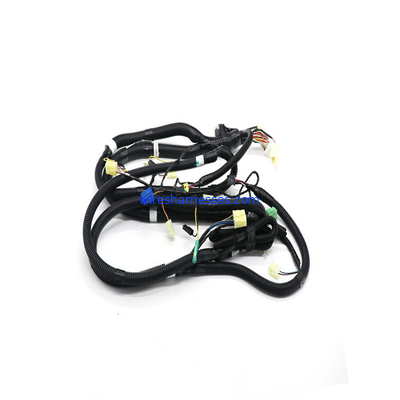

Real photos
Warm Tips:
(Instructions for the installation of the whole vehicle wiring harness) Please confirm the good reinstallation after receiving the goods, wiring harness after installation and dirt are not after-sales.
Please also keep the floor clean and other paper clean and dry when checking, spread the line on it and check it clearly before installing.
Check the plug is correct and other power.
There is a small error between the negative factory line and the original line. The electrician can try to solve it by himself.
Check the error please timely feedback information to contact good salesman
